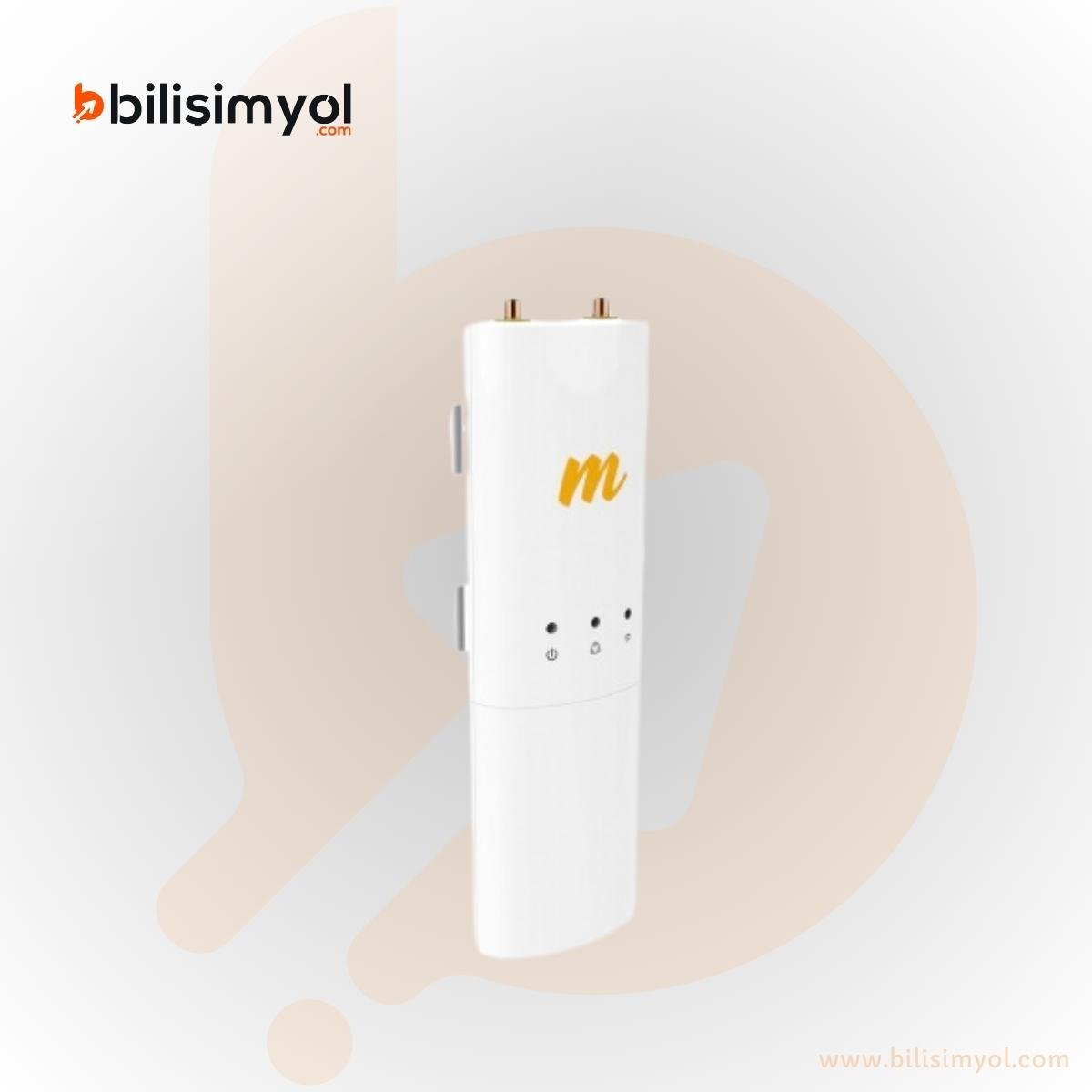

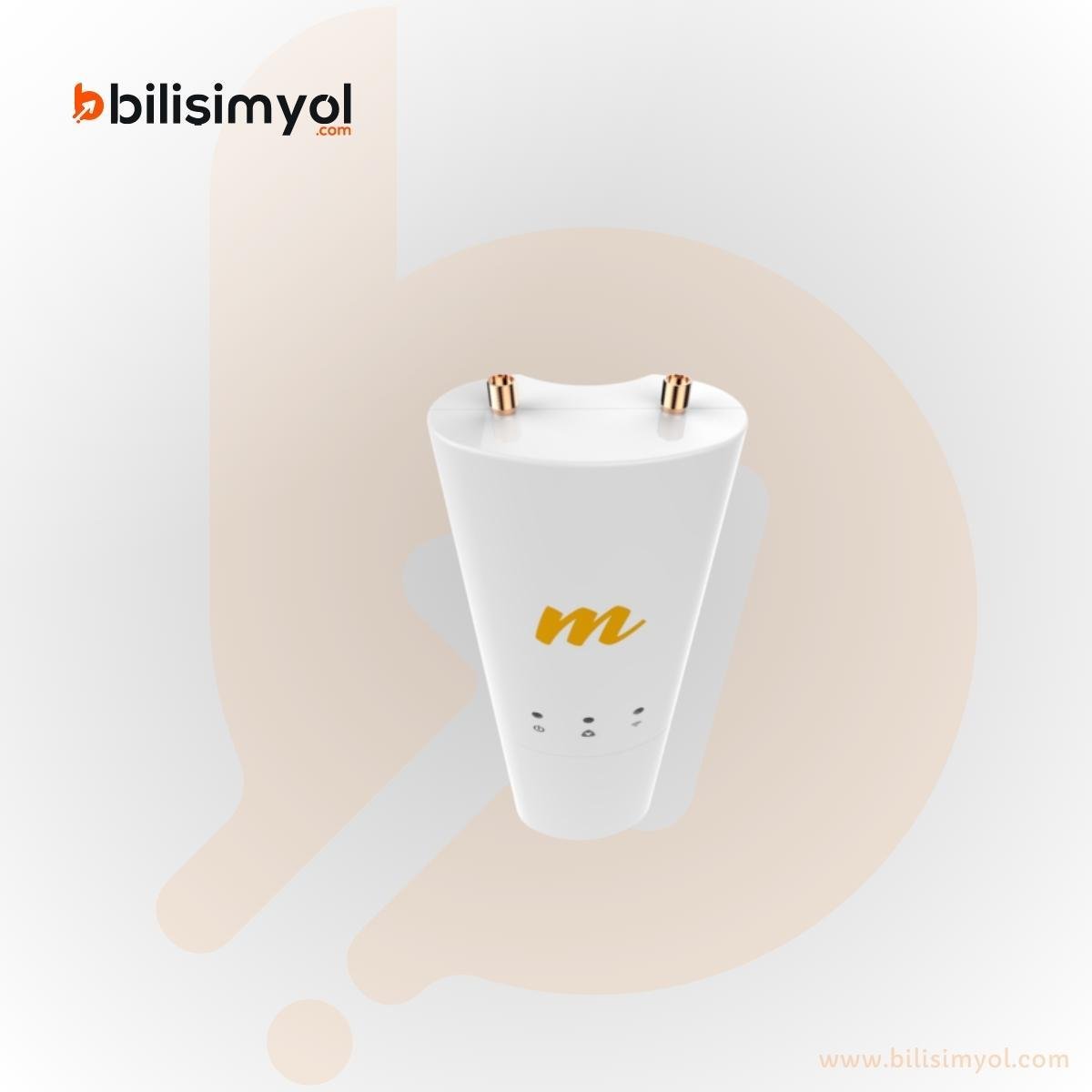

Mimosa C5C
Mimosa C5C
Mimosa C5C
Mimosa

Mimosa C5C (C5C)

Marka : Mimosa
Fiyat : ₺2.878,17  + KDV
KDV Dahil : ₺3.396,24

5GHz 2x2 802.11 ac MU-MIMO client - RADIO ONLY connectorized

Favorilere Ekle
İstek Listeme Ekle
Karşılaştır
Fiyat Düşünce Haber Ver
Gelince Haber Ver
Tavsiye Et
Sayfayı Yazdır
Yorum Yaz
mİMOSA C5C

Mimosa C5c PTP yada PTMP (Client) Kullanımına uygun 5 Ghz , 2x2 Mimo  20/40/80 Ghz Bandwitdh  kapasitesine sahip profesyonel 5 Ghz RadyoLink Cihazı

4900-6400Mhz aralığında çalışma kapasitesine sahip olan bu ürün ( * Kullanılan ülkeye göre yasal frekansların tercih edilmesi gerekmektedir. yapılandırma esnasında otomatik frekans belirlenir ) yüksek kapasiteli veri aktarım projelerinizde ihtiyaçlarınızı karşılayakcaıt.r

Mimosa C5c ürünü antensiz model olup 5 Ghz anten haricen alınması gerekmektedir. 5Ghz anten gruplarında Mikrotik MTAD-5G-30-PA yada Ubnt AF-5G23-S45 , AF-5G30-S45 , AF-5G34-S45 ürünleri tercih edilebilir .



Performance
Max Throughput 500+ Mbps IP (866 Mbps PHY)
Wireless Protocols WiFi Interop
Mimosa SRS
Modes PTMP Client
PTP Backhaul
Radio
MIMO & Modulation 2x2:2 MIMO OFDM up to 256 QAM
Bandwidth* 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS;
Tunable to standard WiFi channels for WiFi Interop
Frequency Range PTMP: 4900-6200 MHz
PTP: 4900-6400 MHz
Restricted by country of operation
*new* US/FCC 5600-5650 MHz support
FCC DFS (U-NII-2a, U-NII-2c) availability pending certification
Max Output Power 27 dBm
Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Power
Max Power Consumption 9.2 W
System Power Method Passive PoE (24-56 VDC)
PoE Power Supply Passive POE compliant, 48-56 V Power over Ethernet supply (Included)
Physical
Dimensions Depth 44 mm (1.73")
Width 65 mm (2.56")
Height 188.4 mm (7.42")
Weight 295 grams (10.4 oz)
Mounting Single pole strap
Connector Type RP-SMA (x2)
Environmental
Outdoor Ingress Protection Rating IP55
Operating Temperature -40°C to +55°C (-40°F to 131°F)
Operating Humidity 5 to 100% condensing
Operating Altitude 4420 m (14501') maximum
Shock & Vibration ETS 300-019-2-4 class 4M5
Features
Gigabit Ethernet 10/100/1000-BASE-T
Multi-User MIMO** CPE is MU-MIMO-capable
Management Services Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI
Smart Spectrum Management Active scan monitors/logs ongoing RF interference across channels (no service impact)
Dynamic auto-optimization of channel and bandwidth use
Security WPA2 + Mimosa 802.1x Client**
QoS Supports 4 pre-configured QoS levels
Regulatory + Compliance
Approvals FCC Part 15.407 and Part 90Y, IC RSS210,
CE, ETSI 301 893/302 502
RoHS Compliance Yes
Safety UL/EC/EN/ 60950-1 + CSA-22.2
