Router Board 953GS-5HnT-RP
Router Board 953GS-5HnT-RP

Router Board 953GS-5HnT-RP (RB953GS-5HnT-RP)

Marka : Mikrotik
Fiyat : ₺6.983,48  + KDV
KDV Dahil : ₺8.380,17

RB953GS-5HnT-RP

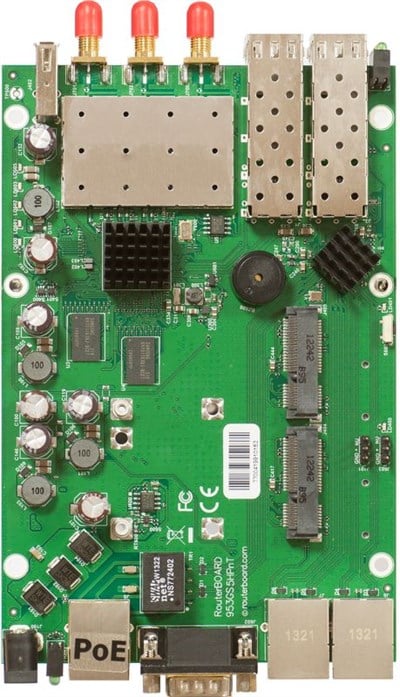

RouterBOARD 953GS-5HnT-RP is our first product with 5GHz 3x3 MIMO Triple Chain support. It has a powerful (up to 1600mW!) Atheros QCA9558 CPU 802.11a/n wireless support with three RPSMA connectors.

RB953GS-5HnT is equipped with a new Scorpion 720Mhz CPU, 128MB RAM and three Gigabit Ethernet ports, to take advantage of high-speed 3x3 MIMO wireless. Moreover, it comes with two SFP cages to accommodate FTTH and fiber ring requirements.

Handy additions are two miniPCI-express slots and two SIM slots, for multiple 3G/4G connections or wireless expansion.

Unit comes with preinstalled RouterOS Level5 license.

Product specifications

Details
Product code RB953GS-5HnT-RP
CPU nominal frequency 720 MHz
CPU core count 1
Size of RAM 128 MB
10/100/1000 Ethernet ports 3
MiniPCI-e slots 2
Wireless standards 802.11a/n
Wireless chip model QCA9558
Number of USB ports 1
Power Jack 1
Supported input voltage 8 V - 30 V
PoE in Yes
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 183x105x24mm
Operating System RouterOS
Operating temperature range -40°C .. +70°C tested
License level 5
CPU QCA9558
Max Power consumption 25W
SFP ports 2
USB slot type USB type A
Supported Voltage PoE in: 8-30V, Power jack: 8-30V DC
Number of chains 3
Serial port RS232
Storage type NAND
Storage size 128 MB
Suggested price $169.00

Wireless specifications

5 GHz
  TX RX
6MBit/s 32 96
54MBit/s 30 81
MCS0 32 96
MCS7 29 77

wireless parameters may be limited in software, depending on your local regulatory limitations

Performance test results

RB953GS-5HnT-RP QCA9558 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 161.9 1,966.1 345.5 1,415.2 435.6 223.0
Bridging 25 bridge filter rules 125.5 1,524.1 126.5 518.1 128.8 65.9
Routing none (fast path) 161.9 1,966.1 334.2 1,368.9 397.9 203.7
Routing 25 simple queues 161.9 1,966.1 183.9 753.3 203.3 104.1
Routing 25 ip filter rules 78.1 948.4 77.8 318.7 77.5 39.7
