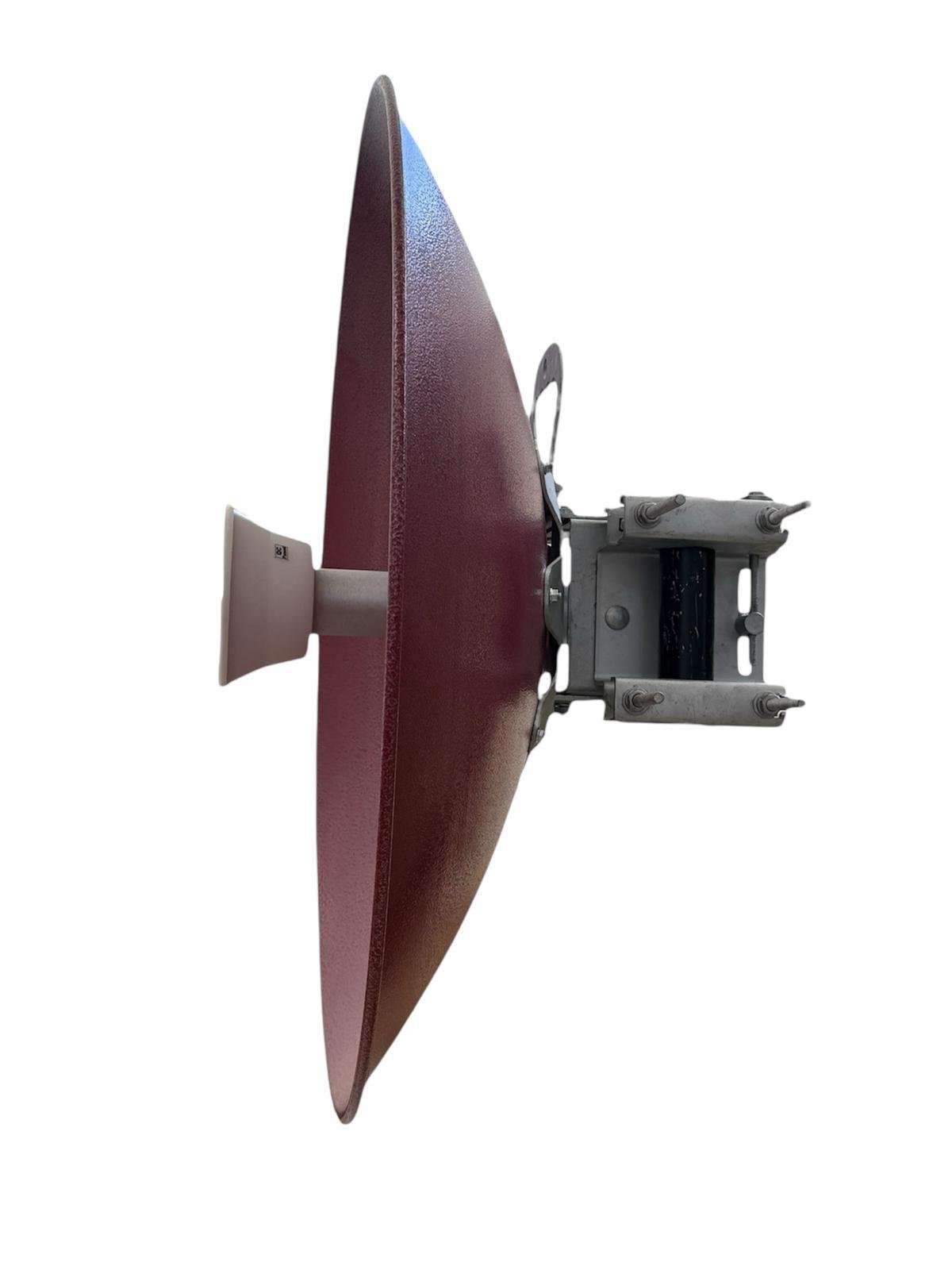

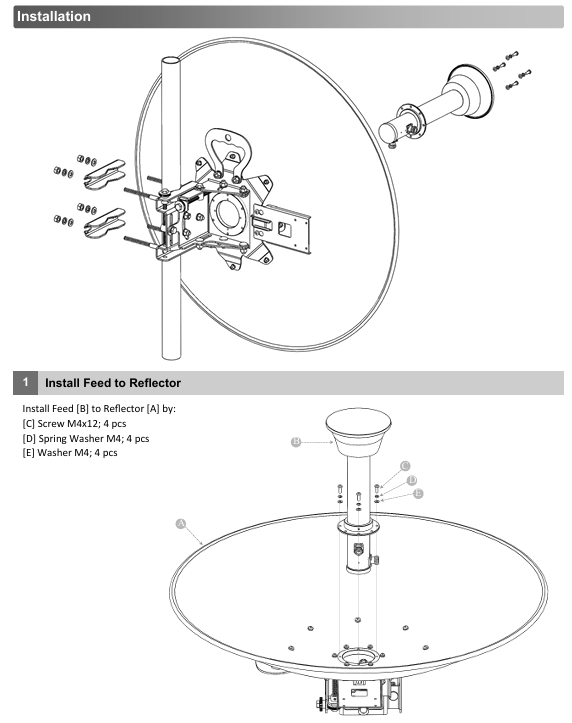

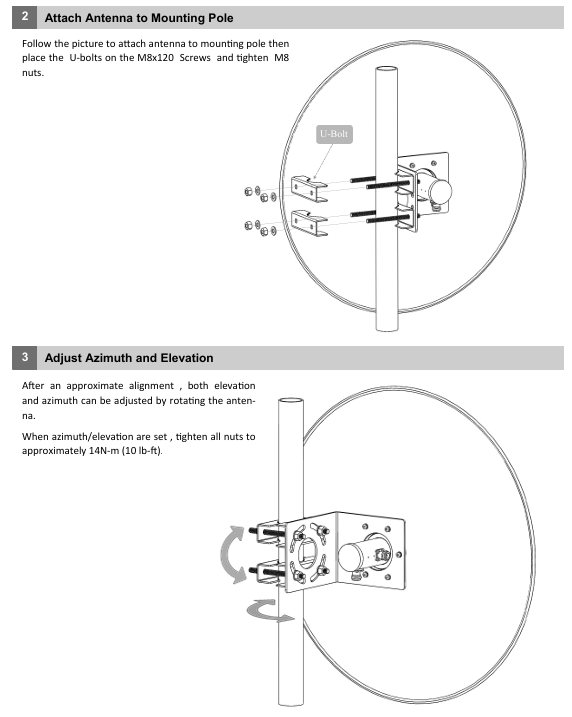

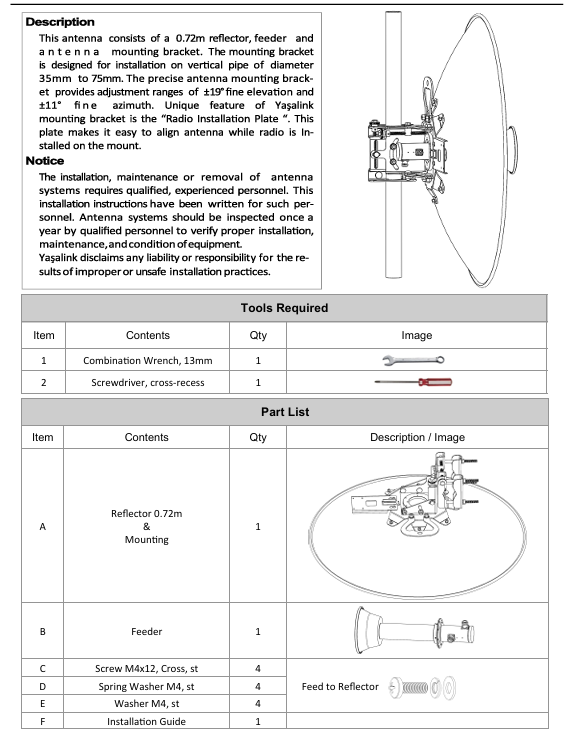

This antenna consists of a 0.72m reflector, feeder, and antenna mounting bracket. The mounting bracket is designed for installation on a vertical pipe of diameter 35mm to 75mm. The precise antenna mounting bracket provides adjustment ranges of ±19° fine elevation and ±11° fine azimuth. The unique feature of the Yaşalink mounting bracket is the “Radio Installation Plate “. This plate makes it easy to align the antenna while the radio is installed on the mount.
HP Performance Serisi — ANT-HP5529N, gürültülü ortamlarda çalışmaya uygun, çok düşük yan loblar ve arka loblara sahip yüksek performanslı parabolik antendir. MIMO çözümleri için uygundur ve özellikle PTP uygulamaları (>50 km LOS koşulları) için tasarlanmıştır.
